Cantilever Pipe Automatic Welding Machine (Heavy DutyType)

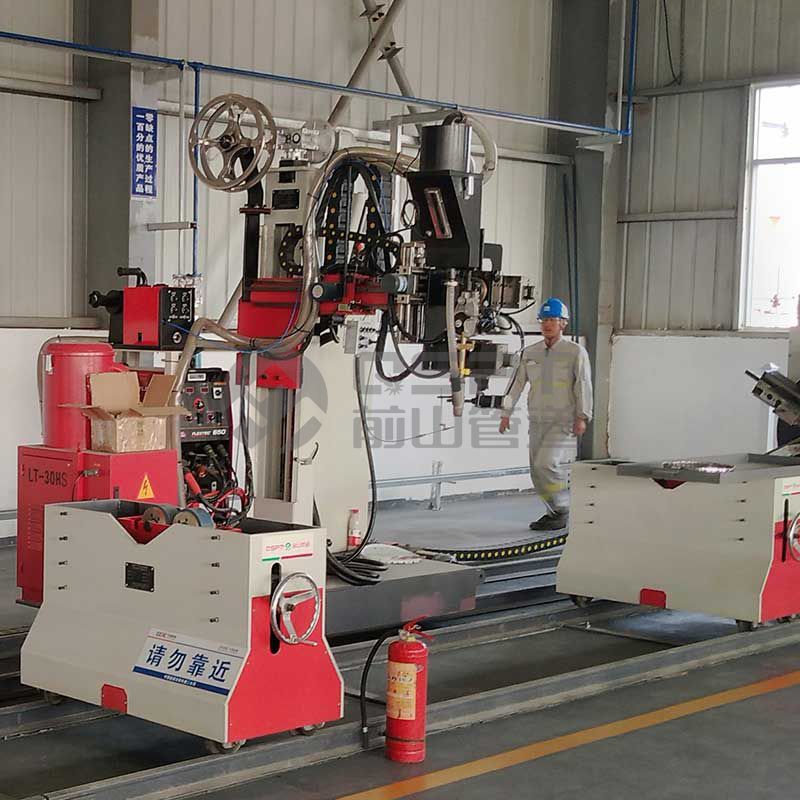

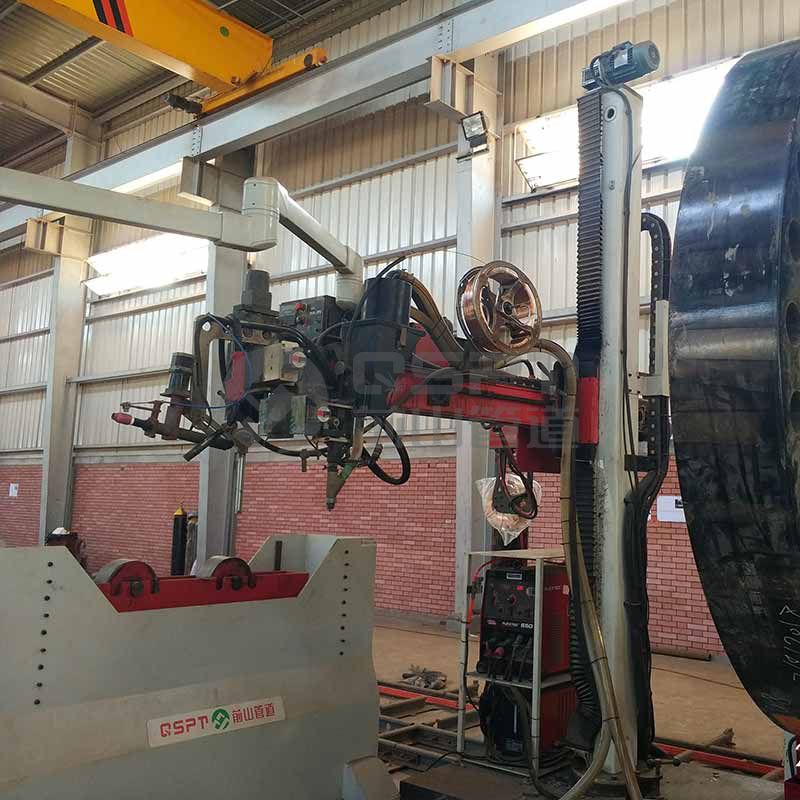

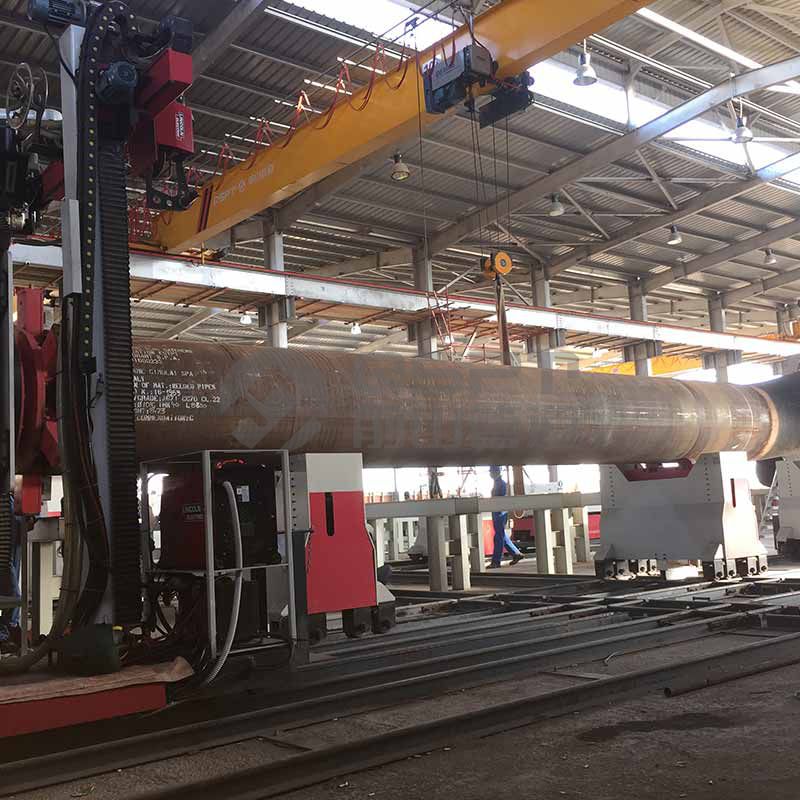

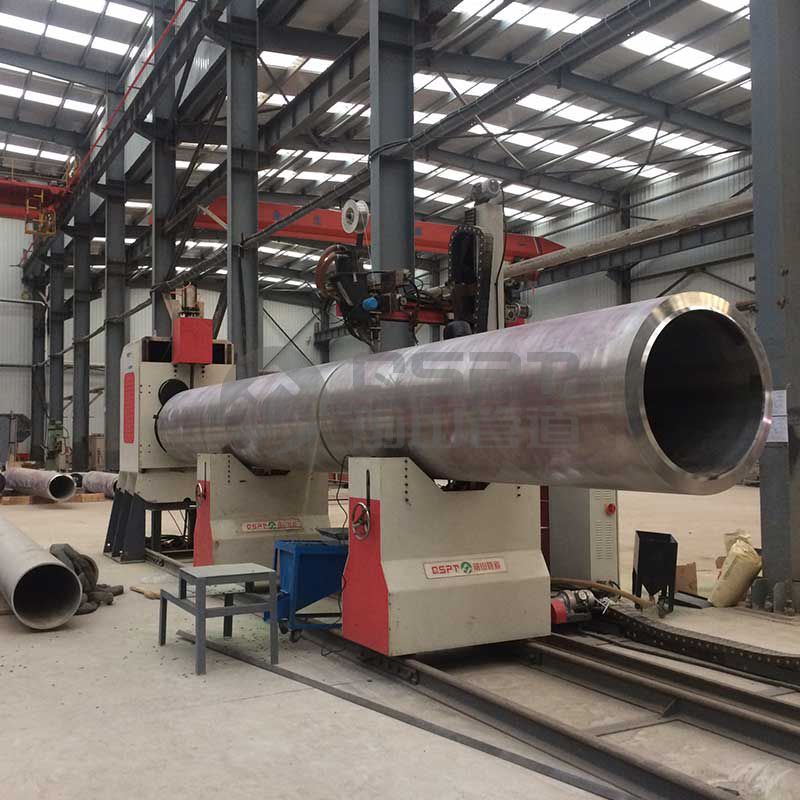

Performance Features: A classic model; suitable for welding "fitting + fitting"spool pieces and for spool pieces with multi-pass weld; able to do multi-pass welding continuously; equipped with: one fixed type welding positioner with the heavyduty chuck; twomovable trolleys with supporting wheels; one traveling cantilever welding trolley; standard configuration: Lincoln Flextech650 multi-function welding power; TIG/MIG root welding with QSPT's root welding technology; TIG/MIG/SAW fill-in and cap welding; operation through a streamline welding control cabinet +an aluminum alloy wire control box.

Classical design

Pipe all-rounder welding master

Chuck drive, chuck clamped, cantilever trolley welding

Heavy duty chuck, super torque: 13200N.m

Automatically mechanical centering

One-time clamping, multi-pass welding

Standard configuration: Lincoln Flextech650

TIG/MIG/ SAW

Max. DN1600

Max. 60mm

Max. 550DI/D（MIG+ SAW）

Max. equivalent to 11 welders

Production line equipment

High efficiency and safety
